Room Process Monitor
RHT76 With Time Display
RHT 76
“RHT76” is specially designed for Clean rooms to meet the requirement of Measurement, Display Relative Humidity, Temperature and Differential Pressure for meeting the Regulatory requirements in API’s & Formulations with Display of Time (HH:MM). It support MODBUS RTU / Ethernet TCP/IP / Ethernet TCP/IP DNP3 / Ethernet TCP/IP+FTP for data logging solution.
Applications
Environmental Monitoring for Clean Rooms with Synchronized Clock
Data logging
Features

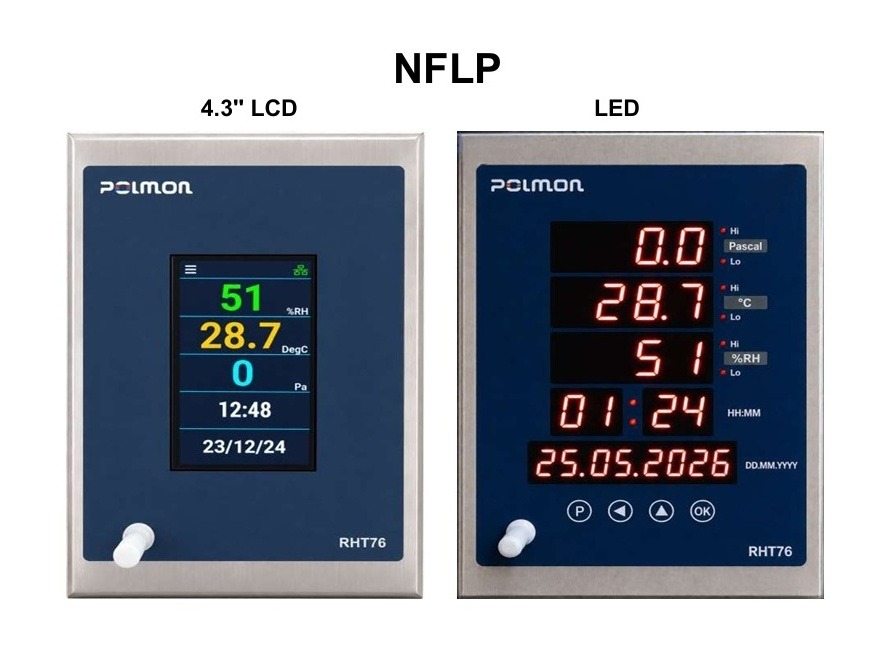

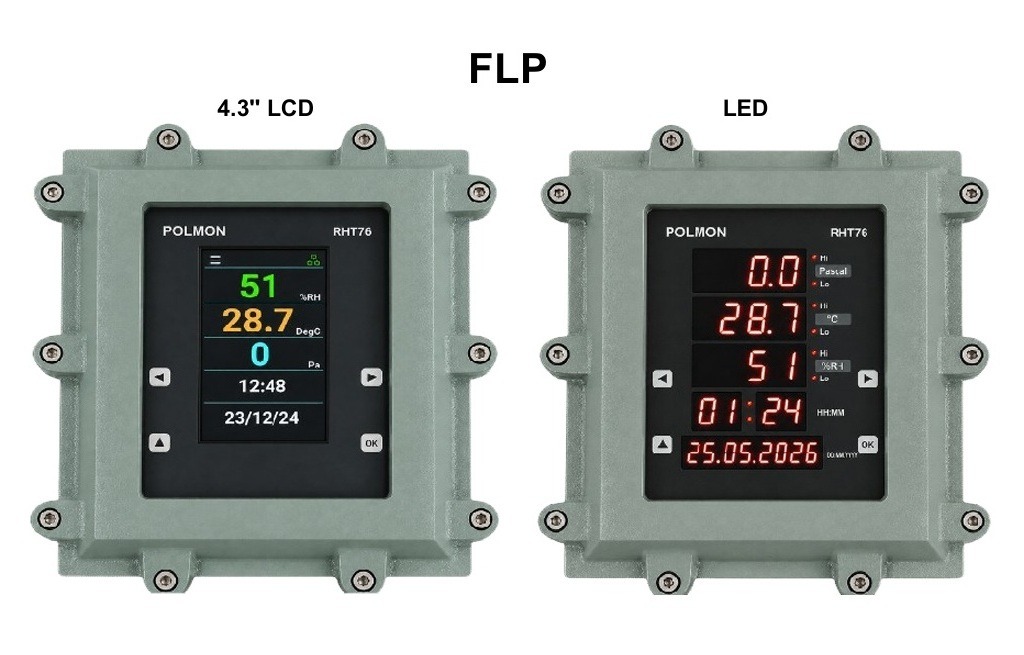

4.3" TFT 480x272 Color LCD
1/2/3 Channel with Clock (for Hrs& Mins in 24 Hour Mode)Display with 0.8” Seven Segment Red LED Display
Wide range of Input Options for Remote Tx interface /Inbuilt Sensor
Dual and triple Inbulit DP sensors Option with wide sensor ranges
Min and Max Value Monitoring
Time Synchronization with PLC/SCADA /DCS through RS-485/Ethernet communication
Programmable Set points for each parameter (HI/LO) for Visual and LED and Audio Announciation
User configurable (enable/disable) Inbuilt Buzzer to provide audible Process value violation
Option for Buzzer Acknowledgement and Snoozing
Process Value violation display indication
Password protected calibration & other programming modes
Software Calibration & Ranging through soft touch tactile keypad
User configurable (enable/disable) Inbuilt Relay (for Process Value) (1- NO, NC)
AHU ON/OFF, Trip Status
Dual door feedback
Relay Output with Programmable Acknowledgement and Snoozing
RS-485 MODBUS RTU Communication with Maximum of 31 devices
Ethernet MODBUS TCP/IP+FTP Communication
DNP3 Over Ethernet TCP/IP
Optional 4-20mA O/P for single channel
Stand-alone mode with inbuilt clock in network failure condition
Clean Room compatible Concealed Enclosure (Depth 45 mm)
