Digital Wireless Synchronized Clocks

Digital Wireless Synchronized Clocks

Advanced Wireless Synchronized Digital Clock System

The POLMON GPS Synchronized Wireless Digital Master Calendar Clock receives the time and date from GPS(Global Positioning System ). GPS is a worldwide system that employs 24 satellites in a integrated network to determine a geographical location anywhere in the world, it will transmits the most accurate and reliable atomic time.

The POLMON GPS Wireless Digital Master Calendar Clock System perfect solution for a wide range of applications where accurate, synchronized time and date both are required. The GPS Wireless Master Calendar Clock is also work with Real Time Clock even if GPS signal fails.

The POLMON Server Synchronized Wireless Digital Clock receives the Time from Server to which clock is connected.

The POLMON Server Synchronized Wireless Digital Master Clock System is perfect solution for a perfect solution for a wide range of applications where accurate, synchronized time is required. The Server Synchronized Wireless Master Clock is also work with Real Time Clock even if Server Time fails to reach the Master Clock.

Applications
Features

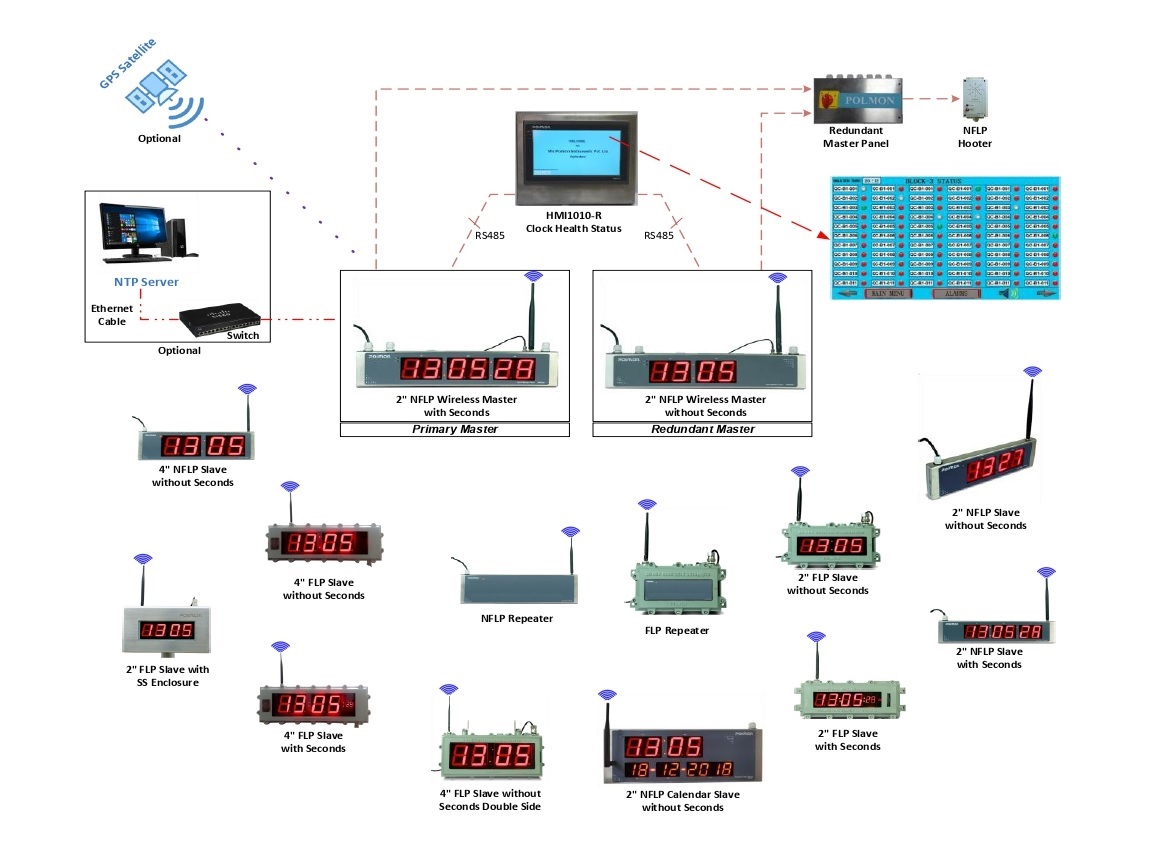

Wireless Clock Network with Feedback

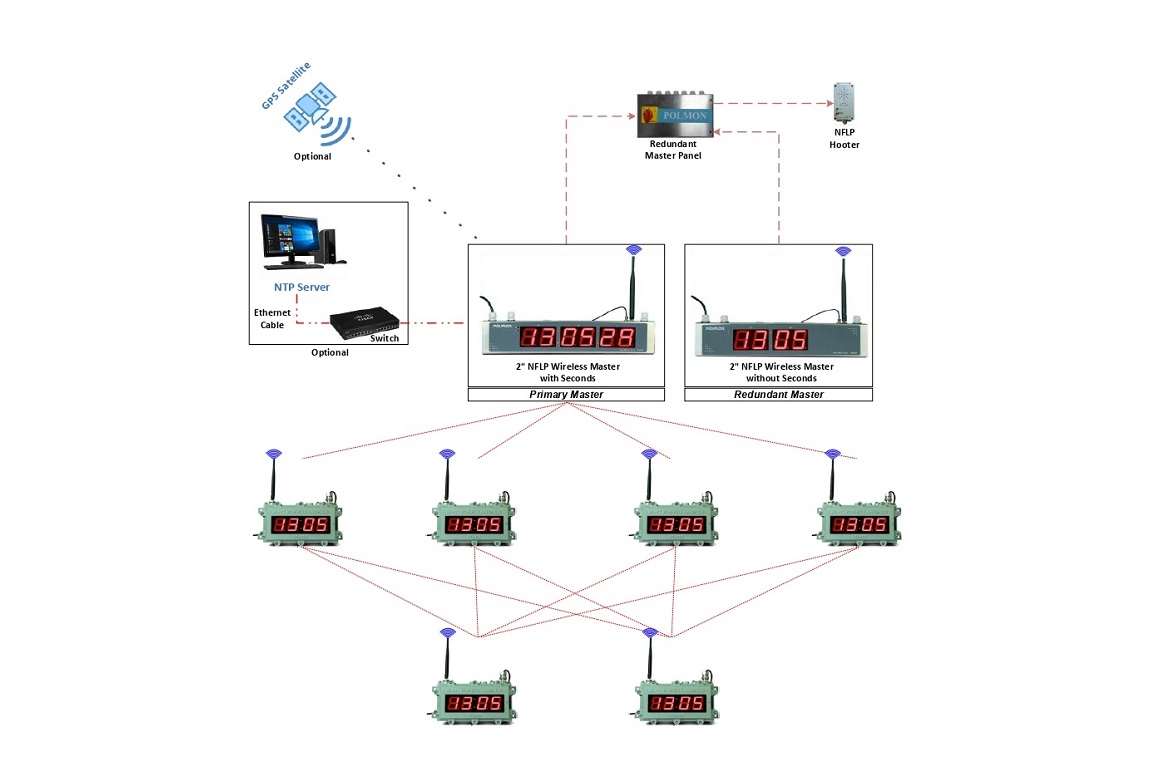

Wireless Clock Mesh Network
Health Status Of Clocks
TM680M-R-1-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg
TM690M-R-1-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg
TM682S-F-1-X
Display size: 2″
Dimensions: 335x199x87mm
Weight: 3.5Kg
TM682S-F-2-X
Display size: 2″
Dimensions: 431x210x110mm
Weight: 5Kg
TM682S-R-1-X
Display size: 2″
Dimensions: 360X100X25mm
Weight: 1.5Kg

TM682S-M-1-X
Display size: 2″
Dimensions: 400x120x35mm
Weight: 1.2Kg

TM682S-C-1-X
Display size: 2″
Dimensions: 350x350x210mm
Weight: 16Kg

TM692S-F-1-X
Display size: 2″
Dimensions: 485x202x90mm
Weight: 8Kg

TM692S-R-1-X
Display size: 2″
Dimensions: 470x100x25mm
Weight: 1.5Kg

TM684S-F-1-X
Display size: 4″
Dimensions: 684x225x130.5mm
Weight: 17Kg

TM684S-F-2-X
Display size: 4″
Dimensions: 521x238x122mm
Weight: 12Kg

TM684S-R-1-X
Display size: 4″
Dimensions: 540x150x40mm Weight: 3Kg

TM694S-F-1-X
Display size: 4″
Dimensions:620x220x120mm
Weight: 17Kg

TM680R-R-X
Dimensions: 360x100x25mm Weight: 1.5Kg

TM680R-F-X
Dimensions: 335x199x87mm Weight: 3.5Kg

TM670M-R-1-1-5-1-X-X
Display size: 2″
Dimensions: 434x149x40mm
Weight: 2.5Kg
TM670M-R-1-1-6-1-X-X
Display size: 2″
Dimensions: 434x149x40mm
Weight: 2.5Kg
TM672S-R-1-2-5-1-X-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg

TM672S-F-1-2-5-1-X-X
Display size: 4″
Dimensions: 684x225x130.5mm
Weight: 17Kg

TM672S-E-1-2-6-1-X-X
Display size: 2″
Dimensions: 519x290x40mm
Weight:
TM672S-F-1-2-6-1-X-X
Display size: 4″
Dimensions: 684x225x130.5mm
Weight: 17Kg
TM674S-R-1-2-5-1-X-X
Display size: 4″
Dimensions: 684x225x130.5mm
Weight: 17Kg
TM672S-R-1-2-6-1-X-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg
TM672S-M-1-1-2-1-X-X
Display size: 2″
Dimensions: 520x140x35mm
Weight: 2Kg
TM672S-R-1-1-2-1-X-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg
TM672S-R-1-1-2-1-X-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg
TM672S-M-1-1-1-1-X-X
Display size: 2″
Dimensions: 520x140x35mm
Weight: 1.75Kg
TM672S-R-1-1-1-1-X-X
Display size: 2″
Dimensions: 470x100x40mm
Weight: 1.6Kg
HMI1010-R-X
Display size: 10.2″
Dimensions: 310x310x65mm
Weight: 4Kg
PiTIME-S-X-X

During synchronization. Master Clock time can be traced to UTC
In offline mode. Master clock accuracy in standalone mode is ± 2 min/year w.r.t UTC

High receiver sensitivity and Spread spectrum technology allows Time signal to be received even through multiple concrete walls Communication distance up to 1.5 Km (LOS)
For gas groups IIA. IIB & IIC Hazardous area as per IEC 60079-0 the transmitter power output shouldn’t exceed 2 watts. Maximum transmitted power in 865-867 MHz band is 1W according to Wireless Planning Commission of India.
Synchronizes all the slave clocks every 1 minute
GPS receiver protocol: NMEA standard
Industrial electronic hardware with extended temperature range
Hooter output upon GPS failure or no feedback from slave
Industrial grade Antenna
FLP Certified system
Highly accurate temperature compensated Real time clock
Panasonic RTC backup battery
Slave clock blinks upon dislinking from master
Slave clock stops displaying time upon being dislinked from master for more than a programmable timeout period
Optional Ethernet based Network Time Protocol (NTP)
WIRELESS CLOCKS
Model FLP/ NFLP Display Format Display size Sync. from RF Antenna type Display type Mounting type Power Supply
MASTER CLOCKS
TM680MR-1 NFLP HH:MM 2.3" GPS External LED Wall Mount 230 V AC
TM680MR-2 NFLP HH:MM 2.3" NTP External LED Wall Mount 230 V AC
TM690MR-1 NFLP HH:MM:SS 2.3" GPS External LED Wall Mount 230 V AC
TM690MR-2 NFLP HH:MM:SS 2.3" NTP External LED Wall Mount 230 V AC
TM670MR-1-1-5-1 NFLP HH:MM
DD-MM-YYYY
2.3" GPS External LED Wall Mount 230 V AC
TM670MR-2-1-5-1 NFLP HH:MM
DD-MM-YYYY
2.3" NTP External LED Wall Mount 230 V AC
TM670MR-1-1-6-1 NFLP HH:MM:SS
DD-MM-YYYY
2.3" GPS External LED Wall Mount 230 V AC
TM670MR-2-1-6-1 NFLP HH:MM:SS
DD-MM-YYYY
2.3" NTP External LED Wall Mount 230 V AC
SLAVE CLOCKS
TM682S-R-1 NFLP HH:MM 2.3" Master Clock External LED Wall Mount 230 V AC
TM682S-M-1 NFLP HH:MM 2.3" Master Clock External LED Flush Mount 230 V AC
TM682S-F-1 FLP HH:MM 2.3" Master Clock External LED Wall Mount 230 V AC
TM682S-C-1 FLP II C HH:MM 2.3" Master Clock External LED Wall Mount 230 V AC
TM684S-R-1 NFLP HH:MM 4" Master Clock External LED Wall Mount 230 V AC
TM684S-F-1 FLP HH:MM 4" Master Clock External LED Wall Mount 230 V AC
TM692S-R-1 NFLP HH:MM:SS 2.3" Master Clock External LED Wall Mount 230 V AC
TM692S-M-1 NFLP HH:MM:SS 2.3" Master Clock External LED Flush Mount 230 V AC
TM692S-F-1 FLP HH:MM:SS 2.3" Master Clock External LED Wall Mount 230 V AC
TM694S-R-1 NFLP HH:MM:SS 4" Master Clock External LED Wall Mount 230 V AC
TM694S-F-1 FLP HH:MM:SS 4" Master Clock External LED Wall Mount 230 V AC
TM672S-R-1-2-5-1 NFLP HH:MM
DD-MM-YYYY
2.3" Master Clock External LED Wall Mount 230 V AC
TM672S-M-1-2-5-1 NFLP HH:MM
DD-MM-YYYY
2.3" Master Clock External LED Flush Mount 230 V AC
TM672S-E-1-2-5-1 NFLP HH:MM
DD-MM-YYYY
2.3" Master Clock Internal LED Flush Mount 230 V AC
TM672S-F-1-2-5-1 FLP HH:MM
DD-MM-YYYY
2.3" Master Clock External LED Wall Mount 230 V AC
TM674S-R-1-2-5-1 NFLP HH:MM
DD-MM-YYYY
4" Master Clock External LED Wall Mount 230 V AC
TM674S-M-1-2-5-1 NFLP HH:MM
DD-MM-YYYY
4" Master Clock External LED Flush Mount 230 V AC
TM672S-R-1-2-6-1 NFLP HH:MM:SS
DD-MM-YYYY
2.3" Master Clock External LED Wall Mount 230 V AC
TM672S-M-1-2-6-1 NFLP HH:MM:SS
DD-MM-YYYY
2.3" Master Clock External LED Flush Mount 230 V AC
TM672S-E-1-2-6-1 NFLP HH:MM:SS
DD-MM-YYYY
2.3" Master Clock Internal LED Flush Mount 230 V AC
TM672S-F-1-2-6-1 FLP HH:MM:SS
DD-MM-YYYY
2.3" Master Clock External LED Wall Mount 230 V AC
TM674S-R-1-2-6-1 NFLP HH:MM:SS
DD-MM-YYYY
4" Master Clock External LED Wall Mount 230 V AC
TM674S-M-1-2-6-1 NFLP HH:MM:SS
DD-MM-YYYY
4" Master Clock External LED Flush Mount 230 V AC
