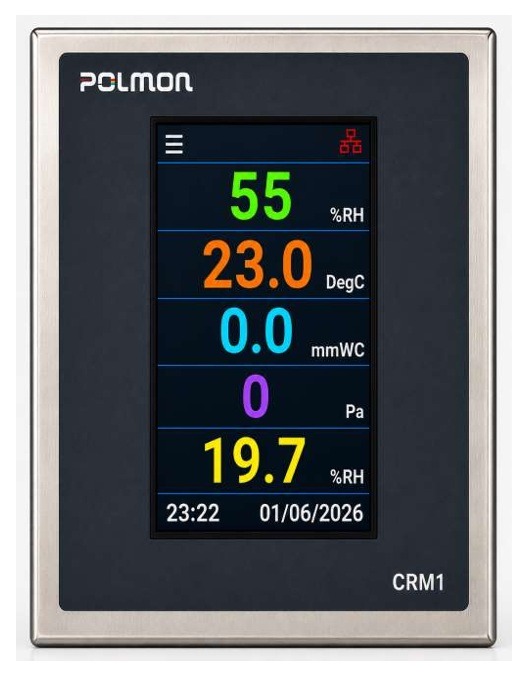

Clean Room Monitor (CRM 1)
7" TFT Display
Date & Time Display
Capacitive Touch
Remote Configurations
5 Analog Inputs
Features :
7" TFT 800x480 Color LCD
BACnet/IP/ MODBUS TCP/IP/ MODBUS RTU
Inbuilt memory for Backfilling data and alarm events
Wide range of Input Options for Remote Tx interface / Inbuilt Sensors / Extended Sensor (up to 10 mtr)
Programmable Set points for RH, Temp & DP
User Selectable Screens (1/2/3/4/5 Parameters with or without Clock)
Time Synchronization with NTP Server
Programmable Set points for Inbuilt RH, Temp & DP or for all 5 analong inputs
(High & Low) with Visual and Audio Announciation
User configurable (enable/disable) Inbuilt Buzzer to provide audible Process value violation
Option for Buzzer Acknowledgement and Snoozing
Relay O/P (3 C NO)
AHU ON/OFF, Trip Status
Dual door feedback
Password Protected calibration & programming modes
Safe area applications with SS Faceplate, flush mount (Brick Wall / Modular Wall) and On Wall Mount for Clean Room Application
Clean Room compatible Concealed Enclosure Applications
Environmental Monitoring for Clean Rooms with Synchronized Clock
