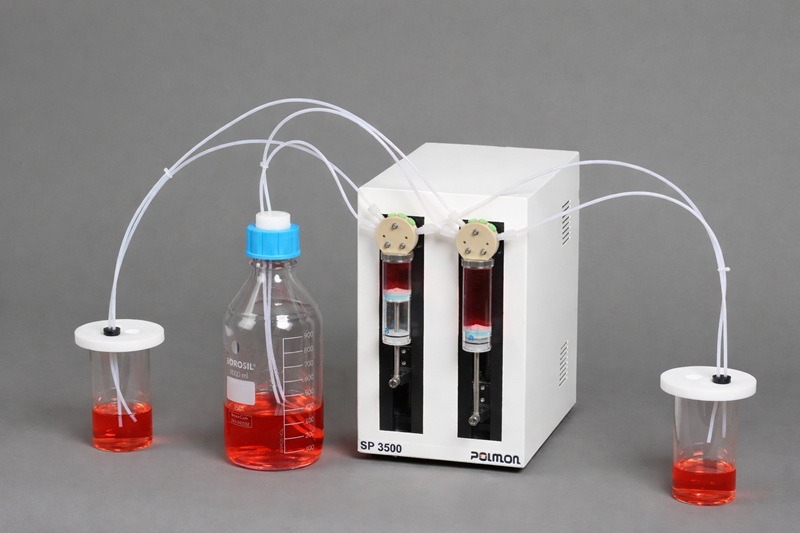

Dual Syringe Pump

SP 3500

Data Sheet

Dual Syringe Pump for Addition and pH Control

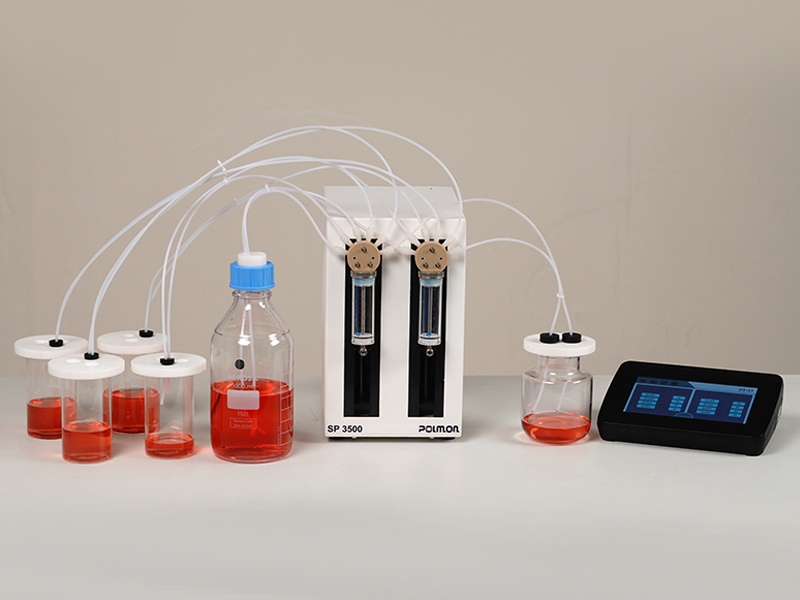

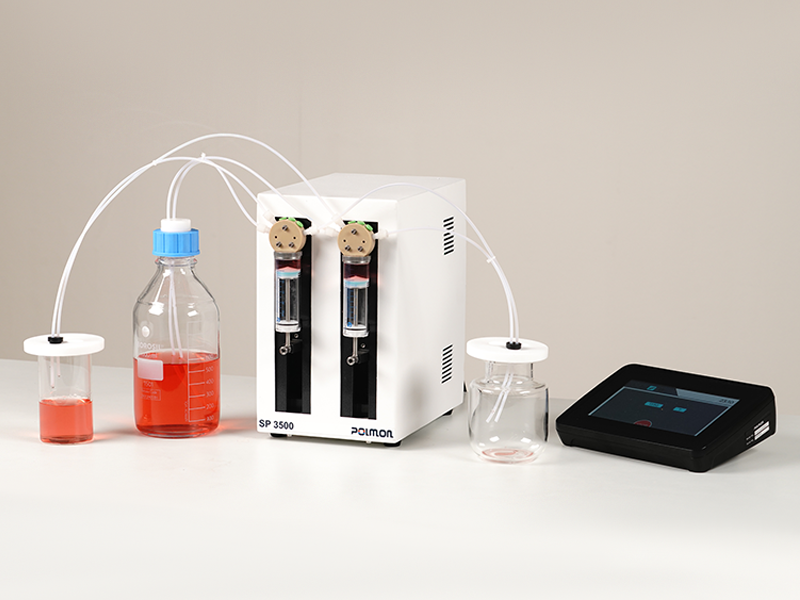

A high-precision, dual-syringe dosing system engineered for continuous, pulse-free reagent delivery — operating standalone via the on-board control pad or integrated with the Polstat 3500.

0.1 – 12

mL / min flow range

< 1 %

accuracy at full stroke

25 mL

dual-syringe capacity

0.7 MPa

max pressure rating

Key Features & Capabilities

Continuous, Pulse-Free Flow

Alternating dual-syringe operation maintains uninterrupted dispensing — one fills while the other delivers.

Precise Reagent Dosing

Stepper-motor-driven syringes provide accurate addition control and pH maintenance for sensitive reactions.

Wide Flow Rate Range

Configurable from 0.1 mL/min to 12 mL/min depending on syringe size and operating mode.

Multi-Valve Reactor Support

Each reactor block can route through multiple valves, enabling flexible fluid paths and parallel processing.

Optimised Cleaning Workflow

A guided, low-solvent cleaning routine reduces consumable use and minimises system downtime.

Industrial Connectivity

Ethernet and RS-485 interfaces integrate cleanly with external controllers and lab automation stacks.

Performance
Flow Rate	0.1 – 12 mL/min
Accuracy	≤ 1 % @ 100 % rated stroke
Precision (Repeatability)	0.3 % – 0.5 % @ 100 % rated stroke
Number of Syringes	2 (independent, alternating)
Syringe Volume	25 mL
Dispensing Volume Range	25ml
Max Pressure Rating	0.7 MPa

Power & Physical
Input Voltage	220 V AC, 50 Hz
Mounting	Bench top
Dimensions (W × L × H)	170 × 245 × 275 mm
Weight	~ 11 kg

Materials & Connectivity
Wetted Materials	Borosilicate glass, PTFE, Sapphire, PCTFE
Valve Model	M06
Connection	1/4 – 28 UNF
Communication	Ethernet, RS-485
Control	PiLAB Software / Control Pad

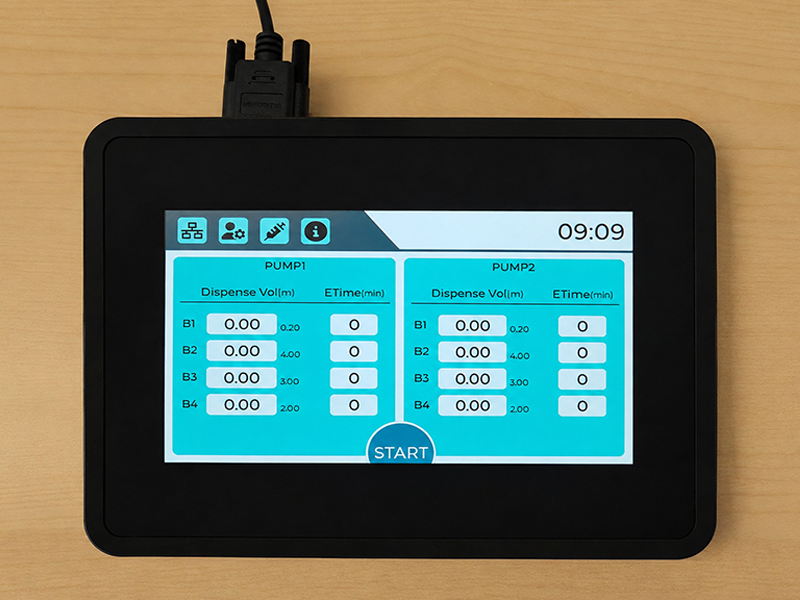

Control Pad	7" LCD Display
Installation Zone	NFLP

Environmental Conditions
Ambient Temperature	5 °C – 40 °C
Humidity	< 80 % RH, non-condensing
